SmartSpark LS Kit (#119007) Includes Module + USB – No Main Harness

Description

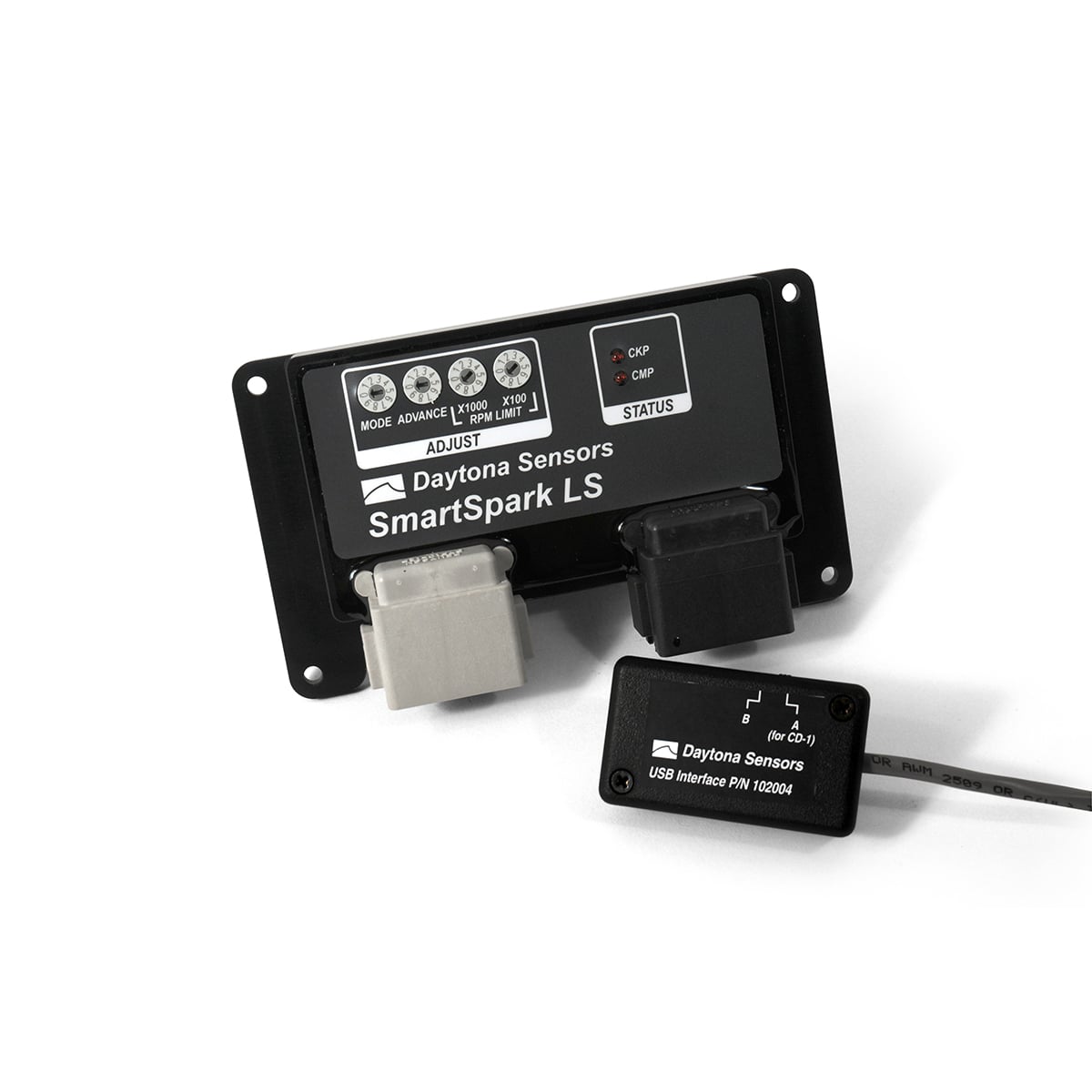

SmartSpark Carb LS Engine Ignition Module Kit – 119007 includes:

• SmartSpark Ignition Module (PN 119001) that works with ALL 24x and 58x Carb LS engines
• USB PC Interface and Cable (PN 102004)

Additional Required Components (Not Included in the kit):

• 1x SmartSpark Ignition Module Harness (119002, 119003 or 119005 – choose your harness depending on the engine)
• 8x LS Ignition Coils (SmartSpark HO Ignition Coils (PN 119100-8) or OE GM LS1/LS2 Coils)
• 2x GM Ignition Coil Harnesses (Available direct from GM, LS2 Coil Specific PN 12579355)
• 1x Windows PC (Optional; you only need a PC and USB adapter for advanced SmartSpark Ignition Module configuration)

Kit 119007 – Engine Application Compatibility – Carb LS Engine Ignition

SmartSpark™ Carb LS Engine Ignition supports carbureted GM LS V8 engines with either a 24x or 58x tooth crank trigger wheel.

• 24x LS engines:  LS1/LS6/LQ4 and LS2(2005) – Requires Harness 119002 or 119003 (see below)
• 58x LS engines:  LS3/LS7/LS9 and LS2(2006) – Requires Harness 119005
• SmartSpark Ignition Module 119001 is compatible with all 24x and 58x engines.

Recommended Part Numbers for 58x LS Engines (LS7/LS3/LS9 and 2006 LS2)

All 58x engines, utilize Ignition Module Harness 119005 and SmartSpark Carb LS Engine Ignition Module 119001. Choose from 58x specific kits: 119075 or 119175.

Important Considerations for LS 24x Engines and Aftermarket Camshafts:

If your 24x LS engine uses an aftermarket camshaft, it’s essential to convert to a front-mounted cam sensor to avoid potential issues. Front-mounted 24x LS cam sensor engines require kit 119073 or 119173 and module harness 119003.

• 119002 harness and kits 119072 or 119172: Compatible only with the stock LS1 cam and rear cam sensor.
  • Note: If you use an aftermarket camshaft with the LS1 rear cam sensor, irregular timing issues may occur. Therefore, to address this, consider switching to the GM front-mounted cam sensor along with a GM 3-bolt 24x timing gear, and utilize our front-mounted module harness 119003.
• 119003 harness and kits 119073 or 119173: Compatible with ALL stock and aftermarket LS1 camshafts. This setup requires the GM front-mounted cam sensor timing cover, sensor bracket, and 3-bolt 24x gear.
• All 24x LS engines utilize SmartSpark Carb LS Engine Ignition Module 119001.

Parts Required To Convert from a LS1 Rear-Mount to Front-Mounted LS1 Cam Sensor:

• Combo Part Includes the GM Timing Cover, Cam Sensor and Cam Sensor Bracket (GM PN 12633906)
• GM 3-bolt 24x Timing Gear (GM PN 12576407)

[LS1 Front-Mounted Cam Conversion guide available on MotorTrend website via this link]

Key Features of the SmartSpark Ignition Module (119001):

• Simple installation, as well as easy configuration
• We include free Windows PC software. You’ll only need a Windows PC for advanced setup and ignition curve tuning.
• Either choose pre-configured advance tables or customize your own timing curves
• Adjust individual cylinder timing for naturally aspirated or boosted setups
• Activate the built-in three-step RPM limiter (from 3000 to 9900 RPM, adjustable in 100 RPM increments for Launch, Burnout, and Maximum RPM)
• Enable the user-adjustable startup timing retard (up to 10 degrees)
• Includes three independent timing retards, each activated by an external 12V signal
• Or choose to utilize an external, user-controlled timing retard (up to 10 degrees via optional RTD-1 connected to GPIO3) and adjust timing retard “on-the-fly”
• Utilize SmartSpark Log PC Software and the USB adapter to view real time engine data during setup and or while on the Dyno
• Clearly visible status LED indicators display cam and crank signal status
• Waterproof with fully encapsulated construction
• Includes heavy-duty 12-pin Deutsch connectors
• Compact design measuring 6.0″ L x 3.5″ W x 0.75″ H
• Perfect upgrade for your MSD LS Ignition

SmartSpark Installation Requirements – Carb LS Engine Ignition:

Each SmartSpark module installation requires: one smart spark module, three harnesses, eight LS ignition coils and optional Windows PC.

• 1x SmartSpark Module (PN 119001). SmartSpark Module is user configurable as a carb LS engine ignition for all LS ignition coils and all 24x and 58x LS engines.
• 1x Module-specific Harness (PN 119002, 119003 [24x only], or 119005 [58x only]).  Each harness part number has a specific engine fitment.
• 2x Ignition Coil Harnesses (one per engine side). Be sure to choose the harnesses that matches the connector on your ignition coils (LS1 or LS2).
  • OE GM LS2 Specific Ignition Coil Harness Part Number:  (GM PN 12579355)
• 8x SmartSpark HO LS2 Coils (PN 119100-8) work with all LS engines when used with the OE GM LS2 Ignition Coil Harness.
• 1x Windows PC (Optional; you only need a PC and USB adapter for advanced SmartSpark Ignition Module configuration)

Recommended LS Ignition Coils and Coil Harness:

• Use SmartSpark HO LS2 Coils (PN 119100-8) on all 24x and 58x LS engines when combined with two OE GM LS2 Ignition Coil Harnesses (GM PN 12579355).
• You can also upgrade LS1 coils to SmartSpark HO LS2 Coils (PN 119100-8) for significantly improved ignition performance (requires two GM Coil Harness 12579355).

Tran Am – TA2 Racing SmartSpark Module Information:

Daytona Sensors specifically designed SmartSpark modules for the Trans Am TA2 racing series. Each unit comes sealed with pre-loaded, Trans Am-approved timing advance curves that users cannot adjust. [More Information Available Here]

Wideband O2 Sensor Recommendation:

Finally, for precise air-fuel ratio monitoring, we strongly recommend the WEGO III Dual Display Lambda Wideband O2 Kit (PN 112006). Lambda values consistently remain accurate across various fuels (E0, E10, E15, and E85), ensuring reliable tuning. [Learn more in our WEGO Wideband O2 Sensor Reference Guide]
