Dyno Timing Light

The Best Engine Control Products for Performance and Racing Enthusiasts

Product Overview

Daytona Sensors™ versatile and long life LED timing light is intended for permanent installation and continuous operation on engine dyno systems. LED life is estimated to be in excess of 400 hours with engine running at 1,500 RPM.
Low cost capacitive spark pickup is used with conventional distributor, coil pack, or coil-near-plug ignition systems where a spark plug wire is accessible. Spark trigger sensitivity adjustment to accommodate different ignition energy levels while avoiding false triggering.
Additional trigger inputs allow using the LED timing light with coil-on-plug ignition systems. High voltage trigger input allows triggering from Coil. Signal for coil-on-plug ignitions without integrated coil drivers. Logic level (0-5V) trigger input allows triggering from coil drive signal for coil-on-plug ignitions with integrated coil drivers.

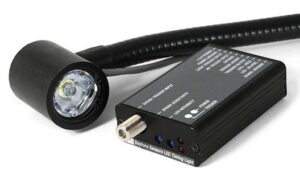

New Phillips® Luxeon® LED with narrow spot optics is pulsed at over 30 watts to provide brightness equal to or better than conventional Xenon flash tubes. LED lamp has 15” flexible gooseneck with 1/8-27 NPT male thread that allows easy mounting and alignment on any dyno frame.
Black anodized aluminum controller housing and Delrin® LED lamp housing. Industrial grade clamping terminal block on rear panel allows easy hookup.
Compact size: controller is 3.3”L x 2.1 “W x 0.9”H and LED lamp is 1.5” OD x 1.9”L. Operates from 12 VDC. Supplied with international power adapter for 110-240 VAC that includes four interchangeable plugs for worldwide operation.
Best of all, Daytona Sensor™ products are covered by a One-Year Limited Factory-Backed Warranty.

Showing all 3 results

Dyno Timing Light

The Best Engine Control Products for Performance and Racing Enthusiasts

Product Overview

LED Timing Light Lamp (#120003)

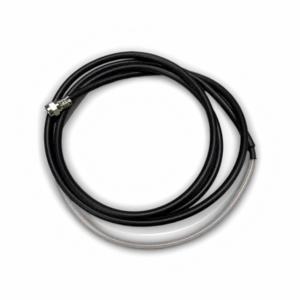

Timing Light Pickup (#120002)

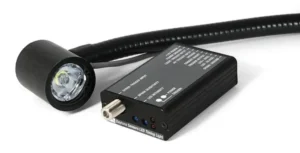

LED Timing Light Kit (#120001)
