NC-1/NC-2 Nitrous Controllers

The Best Engine Control Products for Performance and Racing Enthusiasts

  • Two Controller Units To Choose From To Suit Your Performance Needs
  • Flexible RPM Input Compatible With High Voltage Coil Drive
  • Completely Built-In Data Logging - Ideal As A Basic Vehicle Data Logger/Recorder

Product Overview

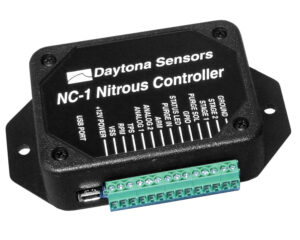

Part #116001* – NC-1™ Nitrous Controller and  Data Logger
(for automotive applications – Includes USB cable)

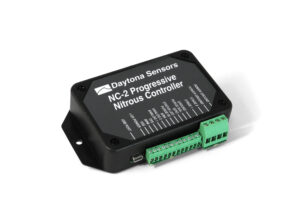

Part #116002* – NC-2™ Progressive Nitrous Controller and Vehicle Data Logger
(for automotive applications – Includes USB cable)

  • Daytona Sensors™ NC-1 and NC-2™ Nitrous Controller units have identical features and capabilities except that the NC-2™ can directly drive two nitrous stages with progressive control (modulated flow). The NC-1™ requires external relays and is limited to on/off control. The NC-1™ is recommended for applications under 100 horsepower.
  • A progressive controller, such as the NC-2™, pulse width modulates the solenoid valves and allows you to control the flow rate. The two primary applications for a progressive controller are matching nitrous system power output to vehicle requirements and independently controlling fuel and nitrous oxide flows for optimum air/fuel ratio (AFR). The NC-2™ can be used for both applications.
  • If you have a high horsepower nitrous system in a vehicle with limited traction, you can use time or RPM based progressive control to reduce the power output in the mid-RPM range or off the starting line to eliminate problems with wheel spin. You can also use RPM based progressive control to reduce excessive strain on the engine in the mid-RPM range.
  • By independently modulating the fuel and nitrous solenoids, you can control the AFR. This is especially useful for late model fuel injected vehicles.
  • Drives two nitrous stages and purge solenoid. NC-2™ is capable of 40 amp output on each stage. Each stage is independently programmable based on throttle position, RPM, vehicle speed, time delay, and first gear lockout. NC-2™ adds capability for RPM or time based progressive control. Output for purge solenoid (requires external relay) and programmable automatic purge when system is armed.
  • Flexible RPM input compatible with high voltage coil drive (vehicles with coil packs or distributor ignition), standard 12 volt tach signal, or low level logic drive (newer vehicles with coil-on plug). General purpose input/output (GPIO) terminal. Programmable for use as shift light output, additional stage enable input, or control output for ignition retard.
  • Status LED output (ideal for use with arming switch containing LED). Built-in data logging. Ideal as basic vehicle data logger during dyno tuning or drag racing. Logs data whenever system is armed. Stores last 5 minutes of data at 10 samples/second. Data logged includes throttle position, RPM, vehicle speed, status of all inputs and outputs, and two 0-5 volt analog inputs.
