WEGO™ III Ruggedized - Sealed Wideband O2 Systems

Single & Dual Channel Display With Built In Data-Logging​

The Best Engine Control Products for Performance and Racing Enthusiasts

WEGO III Wide-Band AFR Display (#112001)

WEGO™ III Display - Single & Dual Channel

  • Rugged Wideband Air/Fuel Ratio Display Systems For Single or Dual Exhaust System
  • Tuning Aid For All Carbureted and Fuel Injected engines
  • For On-Road/Track or Dyno Testing Use
  • Built in Data-Logging
  • Lambda or AFR Display Options (Lambda is recommended - works for all fuel types)

Overview - WEGO™ III Display - Single & Dual Channel Display Systems

Part #112004 - WEGO™ III Single Display Kit

Single Channel - Sealed Lambda Display - Vehicle Mount

Part #112006 - WEGO™ III Dual Display Kit

Dual Channel - Sealed Lambda Display - Vehicle Mount

WEGO™ III Wideband O2 Units Also Available With AFR or Lambda Display (See Below)
  • We proudly offer our WEGO™ Single and Dual Channel Air/Fuel Ratio Display Systems with built-in data logging. These kits include the WEGO™ unit, rugged Bosch® LSU4.2 5-wire wide-band oxygen sensor, 18x1.5mm weld-bung nut for mounting sensor on exhaust pipe.
  • WEGO™ units are versatile tuning aid for all carbureted and fuel injected engines displays air/fuel ratio (AFR) and logs over 2 hours data including AFR, engine RPM, and a spare 0-5V analog input for sensors such as throttle position or manifold pressure.
  • Our WEGO™ units can be used for on-road or dyno testing and are suitable for all automotive, motorcycle, and other small engine applications.
  • All WEGO™ systems are highly accurate with less than ±0.10 AFR error over 10.3 - 19.5 AFR range (±0.007 Lambda error over 0.70 - 1.33 Lambda range) and feature a ‘Easy Free-Air’ calibration procedure corrects for sensor aging effects.
  • WEGO™ systems also include a 0-5V analog AFR output for interface to dyno instrumentation along with an ultra-bright daylight readable blue LED display.
  • WEGO™ units feature a wide supply voltage range from 11-16V allows operation from battery on small engines and race vehicles without an alternator. Current drain is approximately 1 Amp per channel and includes a built-in USB interface.
  • Compact size: WEGO™ III is 4”L x 2”W x 0.5”H, single channel WEGO™ IV is 3.3”L x 2.1”W x 0.9”H
  • For tough and extreme environments, the WEGO III™ is fully encapsulated with a water-proof LED display.
  • WEGO™ Kit include the PC Link software and also a USB cable. PC Link software runs under Microsoft® Windows® XP/Vista/7/8 and Windows® 10. Older Windows® versions and Mac® are not supported. PC Link allows the user to program all the parameters and tables within the CD-1 Sportsman™ system. Minimum PC requirement is a 300 MHz Pentium® with super VGA display (SVGA with 1024 x 768 pixel resolution). The WEGO™ systems connects to the PC by means of the USB interface supplied with the system. The PC must have a free USB port.
  • Best of all, Daytona Sensor™ products are covered by a One-Year Limited Factory-Backed Warranty.

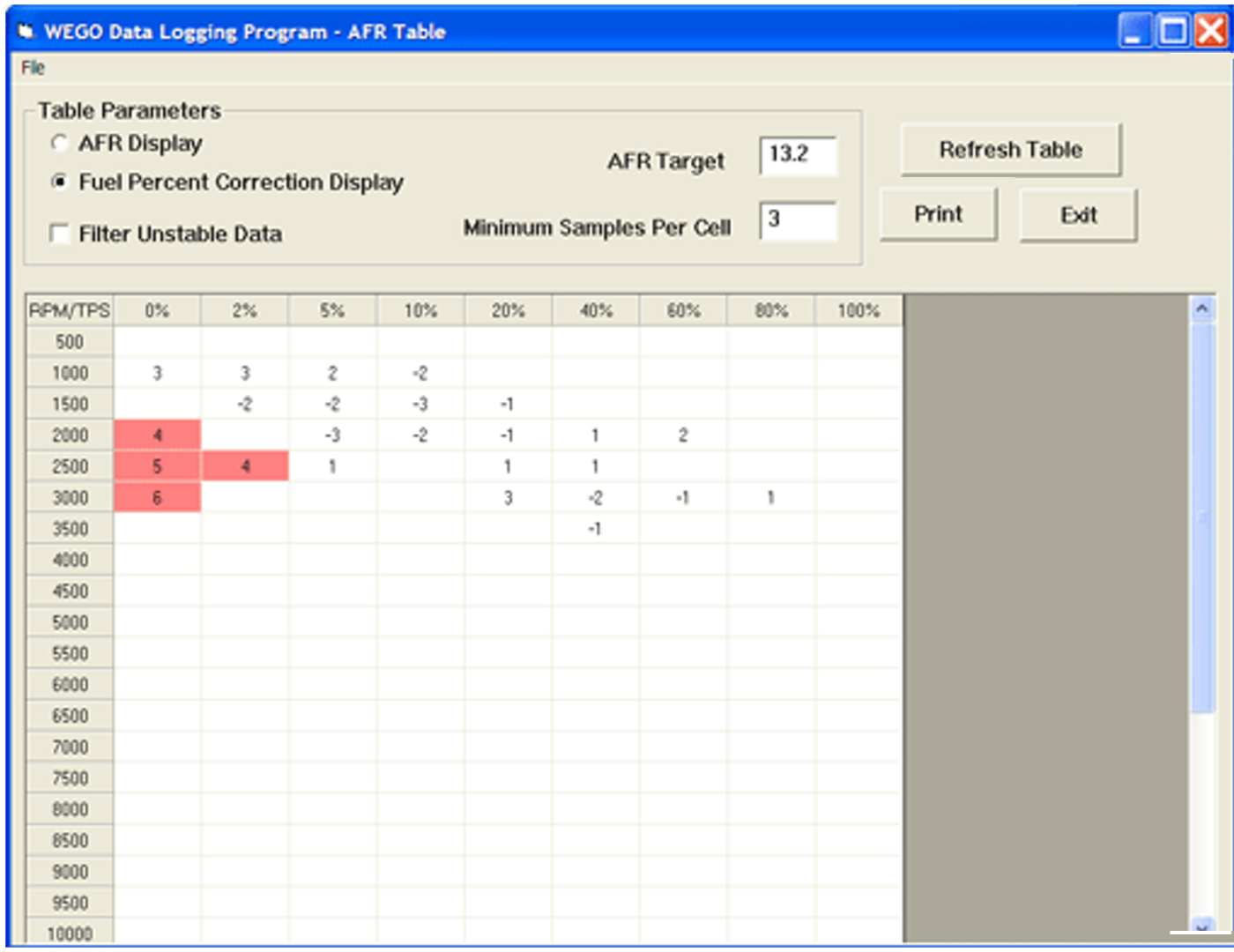

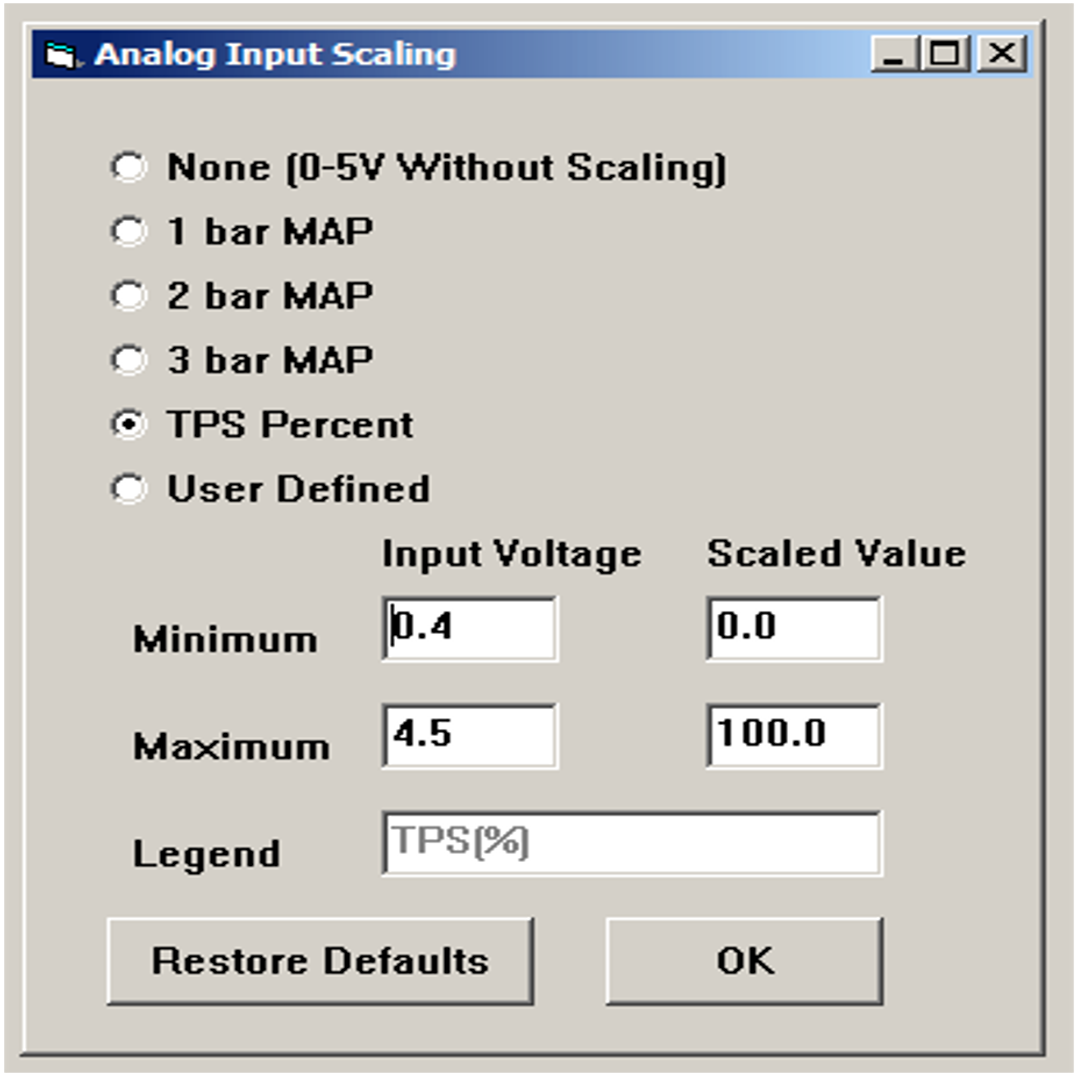

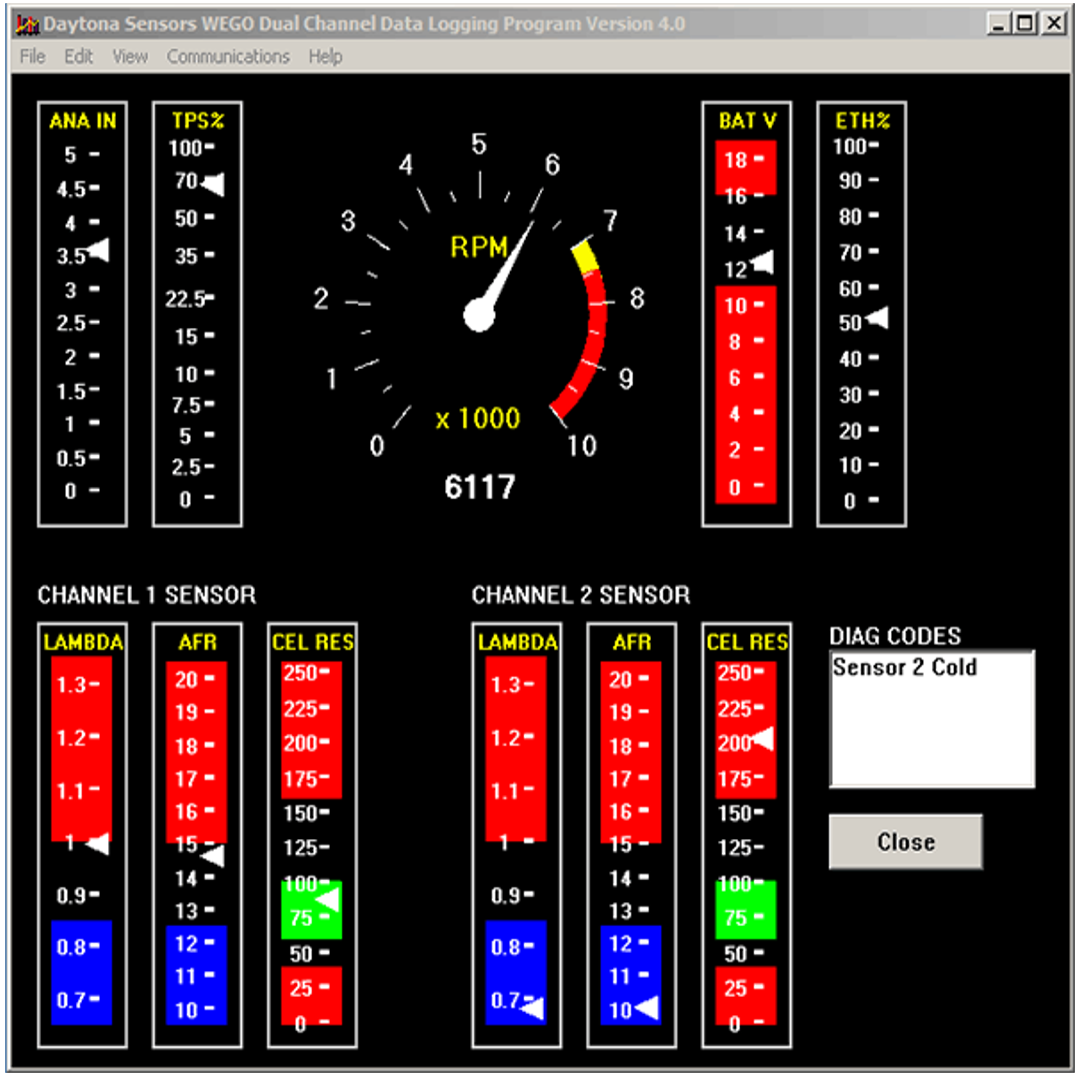

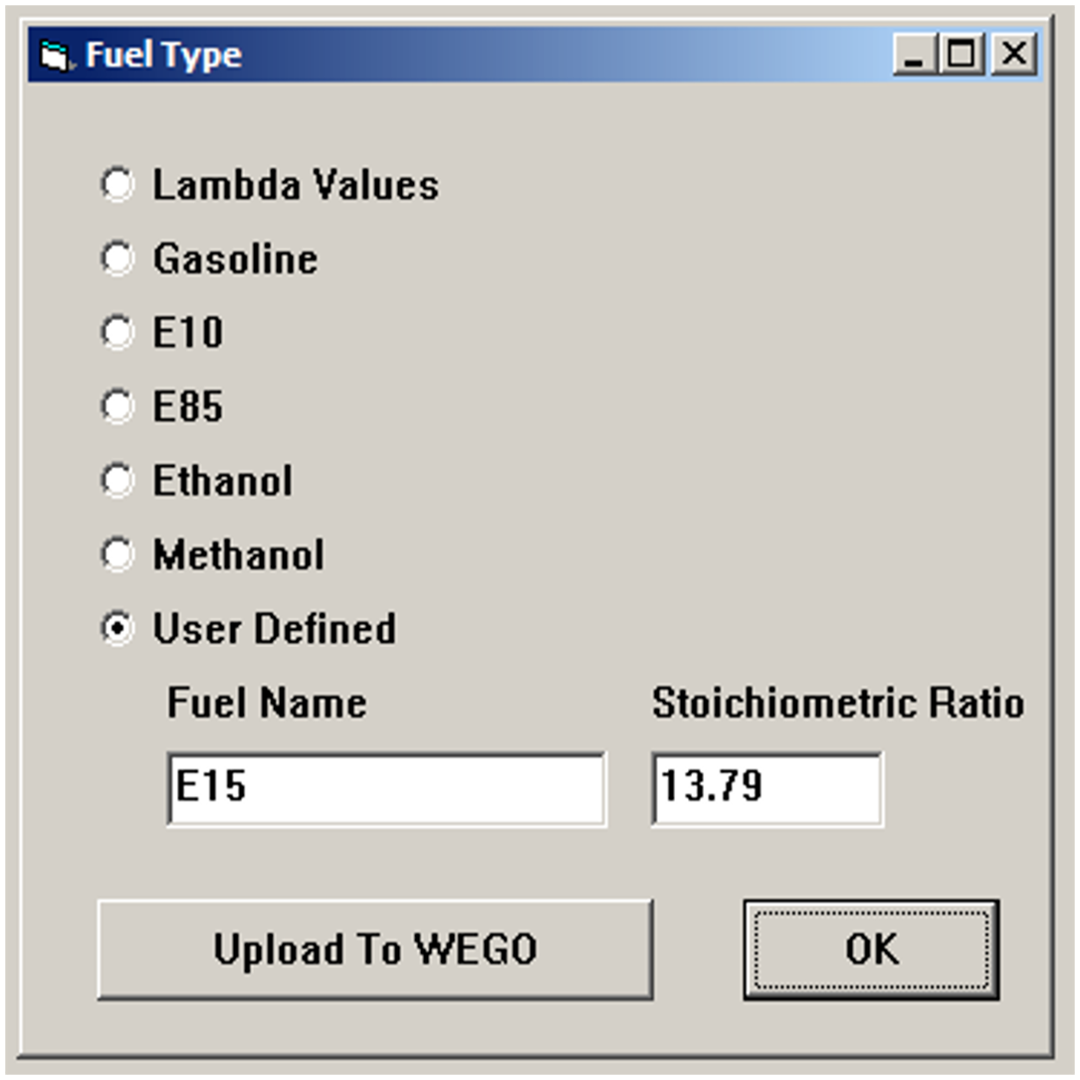

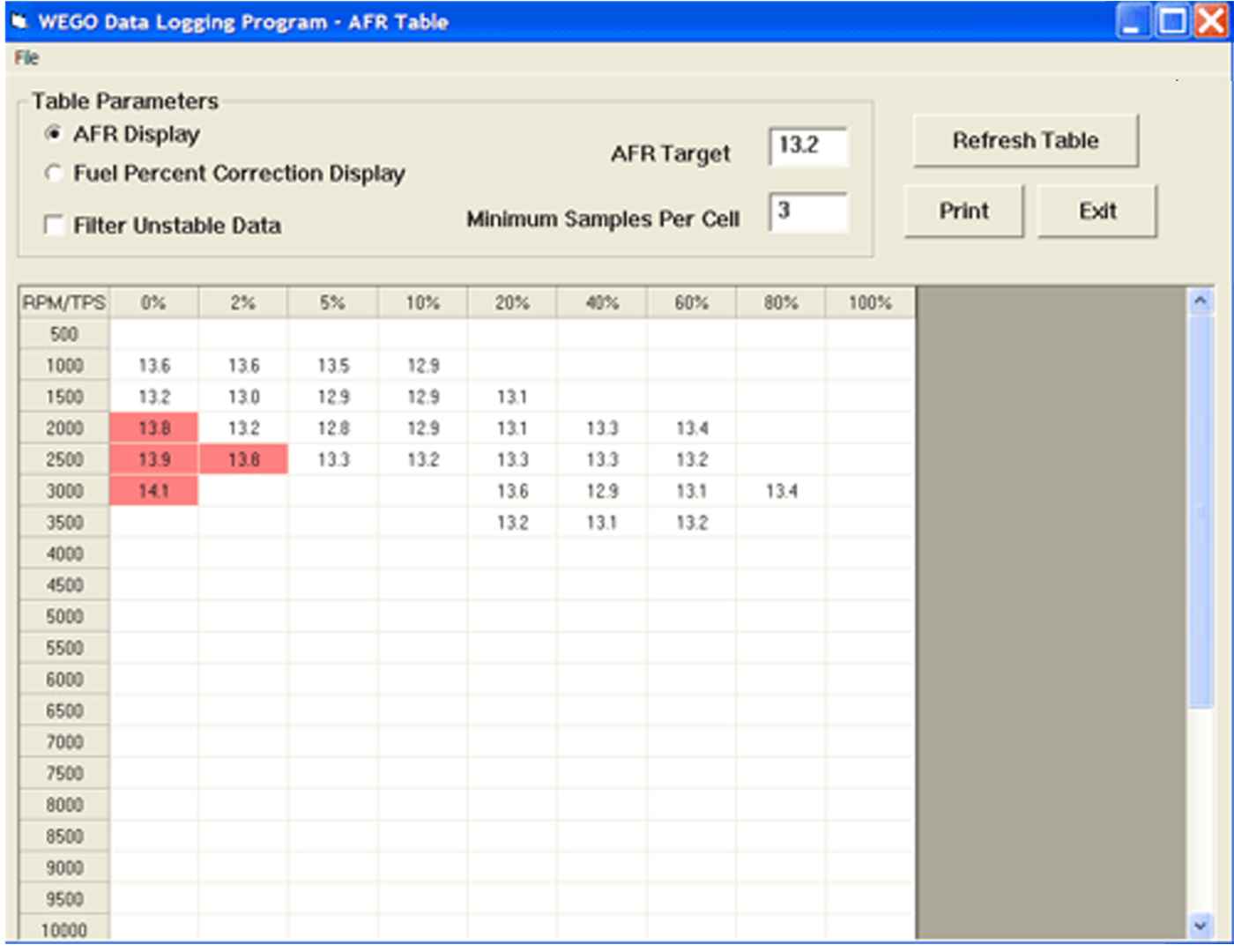

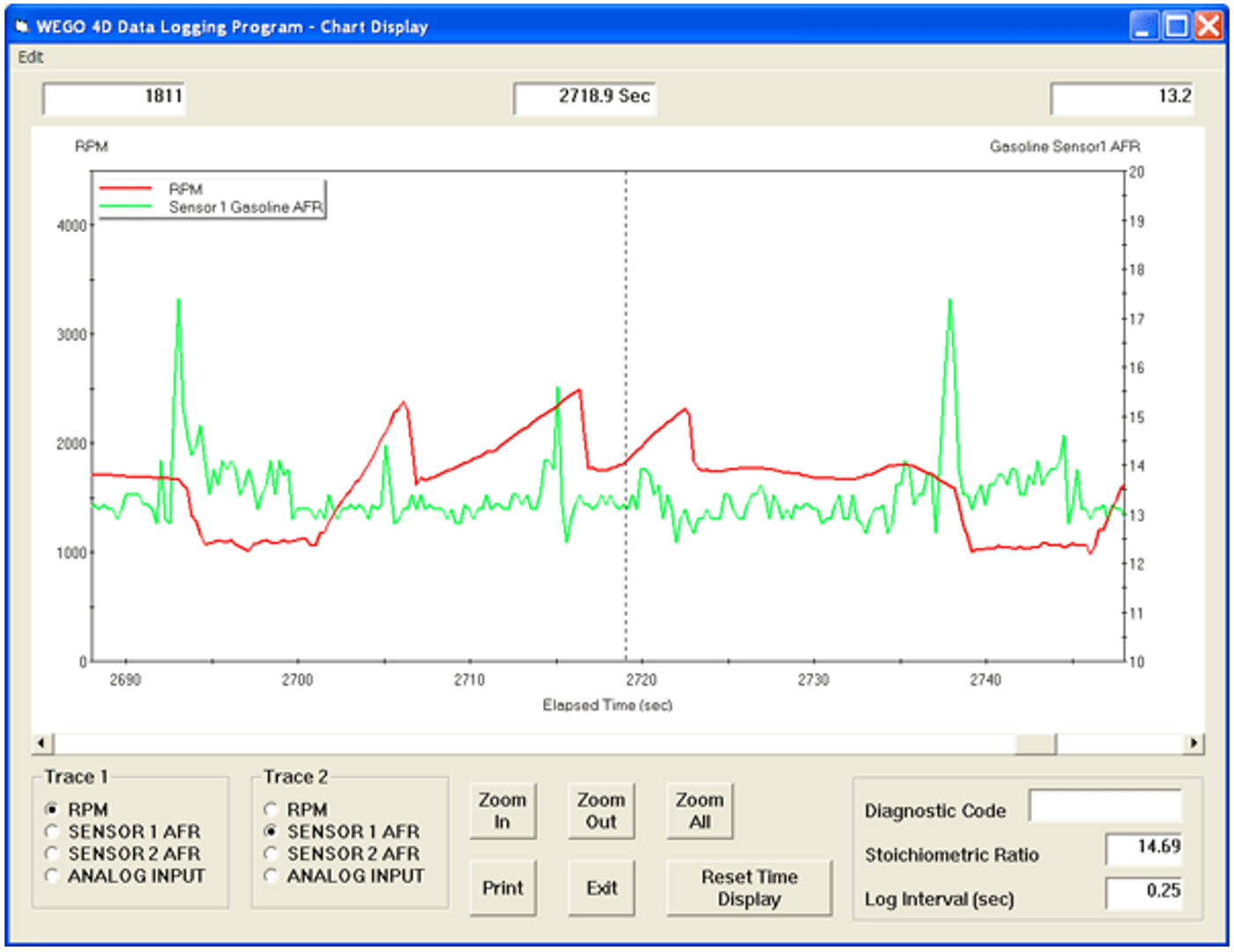

Software Overview - WEGO™ III Display - Single & DUAL Channel Units

Our WEGO™ III software is very intuitive and easy to use.  Remember, you can ‘Test Drive’ our software before you buy our units.
​
Our Slogan is ‘Try It Before You Buy It!’  Click To Enlarge/Scroll/View Images Below – Click Here To Download Sample Software
