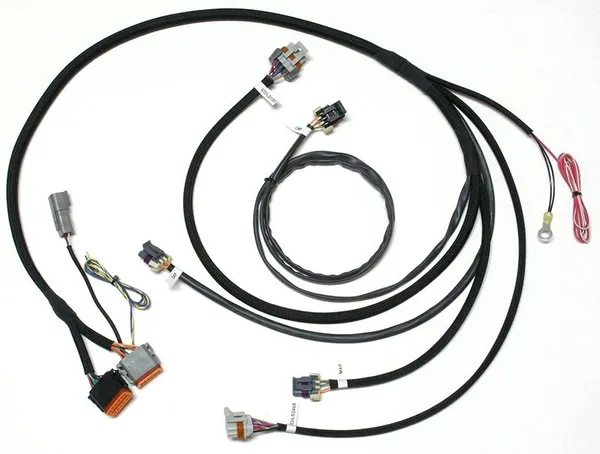

SmartSpark LS Module Harness – 58x – Connects Directly to the Cam Sensor (#119006)

Description

🔧 SmartSpark LS Harness 119006 – Optimized for 58x LS Engines

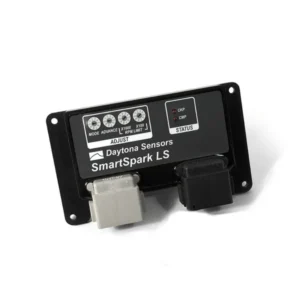

The SmartSpark Module Harness 119006 is designed to work with all 58x LS engines and the SmartSpark LS Module (PN 119001).

This harness is an improved version of Harness 119005. Unlike its predecessor, Harness 119006 connects directly to the front-mounted cam sensor found on all 58x LS engines. This direct connection eliminates the need for the factory GM cam sensor jumper.

Note: Part number 119006 replaces 119005-24.

---

🆚 Two Harness Options Are Available for 58x LS Engines

We offer two harness versions for 58x LS platforms:

• Harness 119005 – The original version

• Harness 119006 – The improved version with direct cam sensor connection

While both harnesses are fully compatible with all 58x LS engines, we recommend using Harness 119006. This reduces potential failure points by eliminating intermediate wiring.

---

📘 SmartSpark LS Harness Selection Guide

---

✅ Choose the Right SmartSpark Ignition Kit

For 24x LS Engines (Gen III):

Use Kit 119072 or 119172
Examples: LS1, LS6, LQ4, Early LS2
⚙️ Look for a black crankshaft reluctor wheel to confirm 24x

For 58x LS Engines (Gen IV):

Use Kit 119075, 119076, 119175, or 119176
Examples: LS3, LS7, LS9, Later LS2
⚙️ Identify by a gray crankshaft reluctor or a cam gear with four raised areas
