SmartSpark LS – 24x Module Harness (#119002)

Description

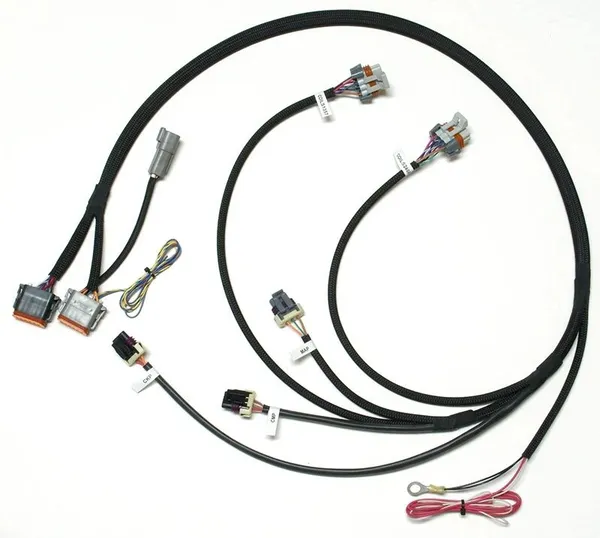

🔧 SmartSpark LS Harness 119002 – For All 24x LS Engines with Front or Rear Cam Sensor

The SmartSpark LS Harness 119002 is designed for use with all 24x LS engines, including LS1, LS6, LQ4, and early LS2 variants. It is fully compatible with the SmartSpark Ignition Module (PN 119001) and comes standard in the Stage II Kit (PN 119072) and MAX Kit (PN 119172) for 24x platforms.

This harness supports both rear-mounted and front-mounted cam sensors, giving builders and tuners flexible installation options.

---

⚠️ Upgrading to a Front Cam Sensor? Read This First

If you’re using an aftermarket camshaft in your 24x LS engine, we recommend converting to a front-mounted LS2-style cam sensor. Some aftermarket cam cores may cause signal dropout with the rear cam sensor, leading to random misfire codes.

To avoid this, convert during your build using:

• GM LS2 timing cover + cam sensor kit (PN 12633906)

• 3-bolt 24x timing gear (PN 12576407)

This ensures rock-solid spark timing and long-term reliability.

---

📘 SmartSpark LS Harness Selection Guide

---

✅ Choose the Right SmartSpark Ignition Kit

For 24x LS Engines (Gen III):

Use Kit 119072 or 119172
Examples: LS1, LS6, LQ4, Early LS2
🖤 Look for a black crankshaft reluctor wheel to confirm 24x

For 58x LS Engines (Gen IV):

Use Kit 119075, 119076, 119175, or 119176
Examples: LS3, LS7, LS9, Later LS2
⚙️ Identify by a gray crankshaft reluctor wheel or a cam gear with four raised areas
